A lawn mower leaking oil is easy to spot but not always easy to diagnose. The oil might appear in different places depending on the source, and the same symptom can have several causes. Working through the likely causes in order is the most efficient way to find and fix the problem. This guide walks through what to look for, where leaks come from, and how to fix them.

What Are the Signs of a Lawn Mower Leaking Oil?
Catching an oil leak early saves the engine from more serious damage. Lawn mower leaks oil in ways that are usually visible if you know what to look for.
- Oil puddles or stains under the mower. A small pool on the ground after the mower has been sitting is one of the clearest signs.
- Oil residue on the engine sides or deck. Oily buildup running down the engine or pooling on the deck points to a leak somewhere above.
- Burning smell during operation. Oil dripping onto hot engine components burns and produces a distinctive smell. Stop and investigate before continuing.
- Blue or white smoke from the exhaust. Oil coming out of exhaust lawn mower situations typically mean oil is reaching the combustion chamber or exhaust components.
- Oil on or around the air filter. A wet or oil-soaked filter often means oil is being pushed through the crankcase breather or has flowed in from incorrect tilting.
Why Is Your Lawn Mower Leaking Oil?
Most oil leak lawn mower problems come down to a few common causes.
Too much oil in the crankcase. When the level is too high, excess oil gets pushed out through gaskets, seals, or the breather tube. Always check the dipstick after adding oil.
Tilting the mower incorrectly. Tilting toward the air filter side sends oil directly into the filter housing. Always tilt with the air filter side up.
Worn gaskets. The valve cover gasket and crankcase gasket compress and crack over time, letting oil seep through.
Damaged oil seals. The crankshaft seals at the top and bottom of the engine wear down with use. Once they fail, oil escapes steadily.
Loose drain plug. A plug that isn't fully tightened after an oil change drips from the bottom of the engine.
Cracked engine block. Less common, but possible after an impact or prolonged overheating.
Where Is the Oil Leaking From?
The table below matches the sign you see to the most likely source of the oil leak on lawn mower.
|
What You See |
Likely Source |
|
Puddle under the centre of the engine |
Lower bearing ring seal (around the blade shaft) |
|
Oil running down engine sides, pooling on deck |
Upper bearing ring seal (top of crankcase) |
|
Oil seeping around the valve cover |
Worn valve cover gasket |
|
Dripping from the bottom of the engine |
Loose or damaged drain plug |
|
Oil around the fill tube or dipstick area |
Worn oil fill seal or loose cap |
|
Oil in or around the air filter |
Overfilling or incorrect tilting |
|
Smoke and oil leak together |
Head gasket issue or worn piston seal |
How to Fix a Lawn Mower Leaking Oil
Once you've identified the source from the table above, here's how to address each one. Lawn mower oil leak repair ranges from a two-minute check to a job worth handing to a technician. If you are wondering, “can you use car oil in a lawn mower,” check the engine manual first, as some automotive oils may work only when their viscosity and service rating match the mower manufacturer’s specifications.
1. Oil level too high: Drain the excess until the dipstick reads within the normal range. Many leaks stop immediately. If excess oil has reached the air filter housing, check your manual forhow to clean lawn mower air filter components and replace the filter if it is saturated or damaged.
2. Loose drain plug: Hand-tighten, then snug with a wrench. Don't overtighten, as that strips the threads.
3. Worn oil cap or fill seal: Replace the cap or seal. Both are inexpensive and take minutes to swap out.
4. Worn valve cover gasket: Remove the valve cover, clean both mating surfaces, and fit a new gasket. A manageable DIY job.
5. Lower bearing ring seal: Requires removing the blade to access. More involved, but doable with basic tools and patience.
6. Upper bearing ring seal: Covered by the flywheel, which needs proper tools to remove safely. Best left to a technician.
7. Head gasket or crankcase issue: Involves significant disassembly. Compare the repair cost to the mower's value before committing.

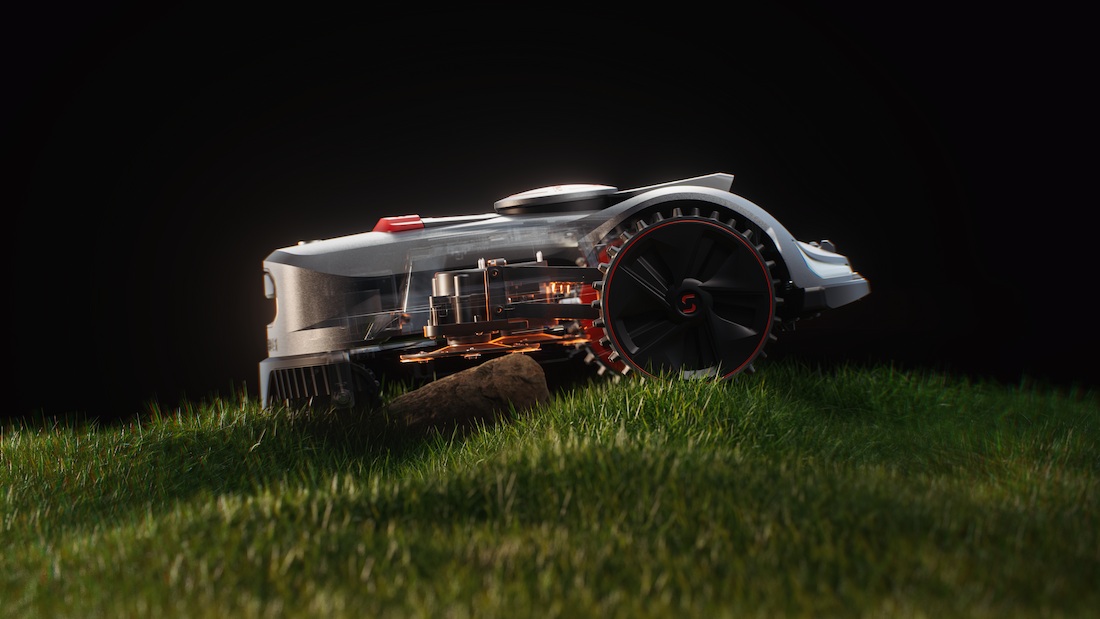

If the repairs keep stacking up or you simply can't find the source, it might be worth considering a different approach. The Sunseeker Elite X4 runs entirely on battery power, so there's no engine oil to change, no gaskets to replace, and no seals to wear out. For yards with complex layouts or lots of obstacles, its LidarAI™ 3D fusion sensing captures over 210,000 point clouds per second with 360° 3D LiDAR, and a 10 TOPS AI chip handles real-time obstacle detection, making it one of the most capable wire-free robotic options available.
