Choose GPS RTK GNSS when your work demands repeatable centimeter precision and you can maintain clear sky views, reliable correction data, and a capable receiver. Standard GNSS suffices for navigation but drifts meters, while RTK excels for surveying, machine guidance, and autonomous mowing.
GPS alone often feels precise—until you look closer. A device can show a position that seems stable on screen but still shift enough to miss a curb, drift across a driveway, or create inconsistencies in mapping and automation tasks. That difference becomes obvious in applications where repeatable accuracy matters more than general location.
GPS RTK GNSS is designed to close that gap by combining satellite positioning with real-time correction data to improve precision significantly. In this article, you will learn what GPS RTK GNSS means, how RTK correction works alongside GNSS signals, and when this level of accuracy becomes necessary in real-world systems.
GPS RTK GNSS refers to a high-precision positioning approach that combines satellite navigation with real-time correction data. To understand it clearly, it helps to separate the three parts and see what each one actually does in the system.
GPS is the original satellite positioning system developed by the United States. It provides location information based on signals from satellites, but on its own it typically only offers meter-level accuracy, which can drift due to atmospheric and timing errors.
GNSS stands for Global Navigation Satellite System and includes multiple constellations, not just GPS. These include Galileo (Europe), GLONASS (Russia), and BeiDou (China). Using more systems improves satellite coverage and stability, especially in complex environments.
RTK (Real-Time Kinematic) is not a satellite system. It is a correction method that improves GNSS accuracy by comparing satellite signals with a known reference source. These corrections are sent in real time to remove most common errors and significantly increase positioning precision.
Together, GPS/GNSS provides the raw location data, while RTK refines it into centimeter-level accuracy under good signal and correction conditions.
To understand RTK GNSS clearly, it is best to first separate the system into two parts: GNSS for basic positioning and RTK for correction. They serve different roles and only become powerful when combined.
As mentioned above, GNSS is the satellite navigation system that gives a device its basic location. The receiver listens to multiple satellites and calculates position based on how long signals take to arrive.
This produces a usable location, but it is not perfectly accurate. Small delays caused by the atmosphere, satellite orbit changes, and signal reflections can introduce errors, usually at the meter level.
At this point, the system needs a way to reduce these errors, which is where RTK comes in. RTK is not a positioning system by itself. Instead, it is a correction method that improves GNSS accuracy.
RTK works by adding a second reference source to the system. A fixed base station sits at a known location and also receives satellite signals. Because its true position is already known, it can calculate the difference between expected and actual satellite readings. These differences become real-time correction data.
Once GNSS produces a basic position and RTK produces correction data, the rover combines both.
The base station sends corrections to the moving device many times per second. The rover continuously adjusts its GNSS position using these corrections, removing most of the errors caused by atmosphere and signal drift.
When conditions are stable, this combined system can improve accuracy from meter-level GNSS to centimeter-level positioning in real time.
The useful comparison is not which acronym sounds more advanced. It is whether you need real-time precision, whether correction data is available, and how much waiting or setup you can tolerate.
Method | Typical use | Strength | Main limitation |
Standard GNSS | Navigation, casual mapping, phone location | Simple and widely available | Meter-level drift is normal |
RTK GNSS | Surveying, machine guidance, precision mowing, layout work | Centimeter-level real-time positioning under good conditions | Needs corrections and clean signal tracking |
PPP | Remote work without a nearby base or RTK network | High accuracy possible over wide areas | Convergence time and service dependency |
To move RTK GNSS from concept to real-world use, a complete setup is needed where positioning, corrections, and data flow work together in real time.
The receiver must support carrier-phase measurements and multiple satellite systems (GPS, Galileo, GLONASS, BeiDou). Multi-frequency tracking improves stability in difficult areas. The antenna is equally important—poor antenna design increases multipath errors from reflections on buildings, trees, or ground surfaces, which reduces accuracy even when correction data is strong.
A fixed base station provides corrections from a known coordinate but requires careful setup and stable placement. RTK networks or subscription services are easier to use and more flexible for mobile work, but they depend on reliable coverage and service uptime. Any interruption in corrections directly reduces positioning precision.
Corrections must be transmitted continuously via radio or cellular internet (e.g., NTRIP). Low latency is critical—delays or dropouts can cause loss of centimeter-level accuracy. Stable connectivity is often the limiting factor in field performance.
Good RTK systems show signal quality, satellite count, correction age, and fix status. This helps users detect when accuracy drops instead of relying on position alone.
RTK GNSS can reach centimeter-level accuracy, but only under the right conditions. In real use, performance depends on several environmental and system factors that influence signal quality and correction reliability.
RTK GNSS is used anywhere precise, real-time positioning is needed beyond standard GPS accuracy. Its value comes from delivering consistent centimeter-level data in environments where small errors can create large operational differences.
RTK is widely used in surveying, site layout, and machine control. It allows surveyors and operators to place boundaries, guide excavation, and align infrastructure with centimeter-level precision. In construction machinery, RTK reduces manual marking and improves repeatability when working on large sites or graded terrain.
Farmers use RTK GNSS for tasks like automated steering, planting, and fertilization. By following exact parallel paths, machinery avoids overlap and gaps, which improves crop efficiency and reduces input waste. It also supports consistent operations over large fields where visual guidance would not be reliable.
In aerial surveying and drone mapping, RTK improves georeferencing accuracy for images and terrain models. This reduces the need for heavy post-processing and makes real-time mapping more practical for infrastructure inspection, environmental monitoring, and GIS data collection.

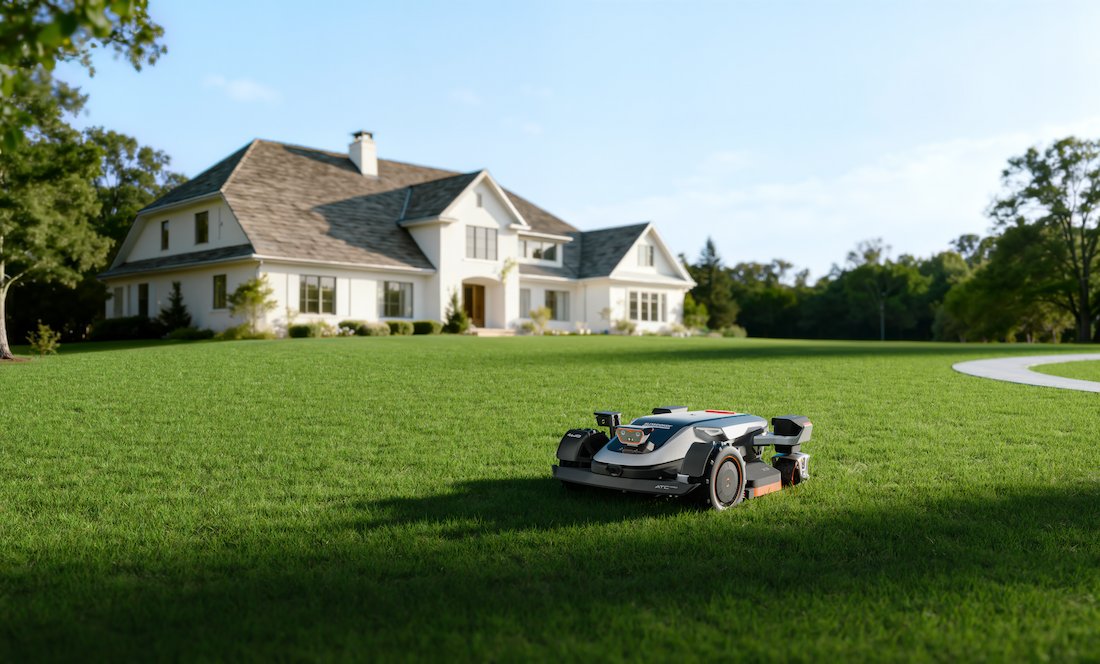

RTK is increasingly used in autonomous navigation where machines must operate without physical guides. A clear example is robotic lawn mowers. High-end systems such as the Sunseeker Elite X9 use advanced positioning and navigation (AONavi™ with RTK-level precision support) to maintain structured, wire-free mowing patterns, handle large areas like estates or sports fields, and keep consistent coverage even in complex layouts.
In warehouses, ports, and automated transport systems, RTK supports accurate path tracking for mobile robots and vehicles. This improves coordination, reduces collision risk, and enables more efficient autonomous movement in dynamic environments.
RTK GNSS matters when you need repeatable, real-time precision and can support it with clean sky view, solid corrections, and the right setup. If your work only needs rough location, standard GNSS is simpler and cheaper. Before you rely on RTK, check fix status in the exact spots that matter most, especially near trees, walls, and other signal obstacles. This is also increasingly used in robot lawn mower systems, including Sunseeker’s RTK-based navigation technology, to improve positioning stability and ensure consistent coverage in complex outdoor environments.
GPS is a single satellite navigation system that provides meter-level positioning accuracy based only on satellite signals. RTK GNSS, on the other hand, adds real-time correction data from a base station or network to improve accuracy. While GPS alone can drift due to atmospheric and timing errors, RTK GNSS reduces these errors and enables centimeter-level precision.
RTK (Real-Time Kinematic) is a correction technique used with GNSS systems. It works by comparing satellite signals received at a fixed reference station with those from a moving receiver. The difference is sent as real-time correction data, allowing the rover to adjust its position continuously and achieve very high accuracy.
Yes, RTK can work without internet. If a local base station transmits corrections via radio, the system does not need online access. However, if RTK uses a network service (NTRIP), then internet or mobile data is required. The key requirement is continuous correction delivery, not necessarily internet connectivity.
